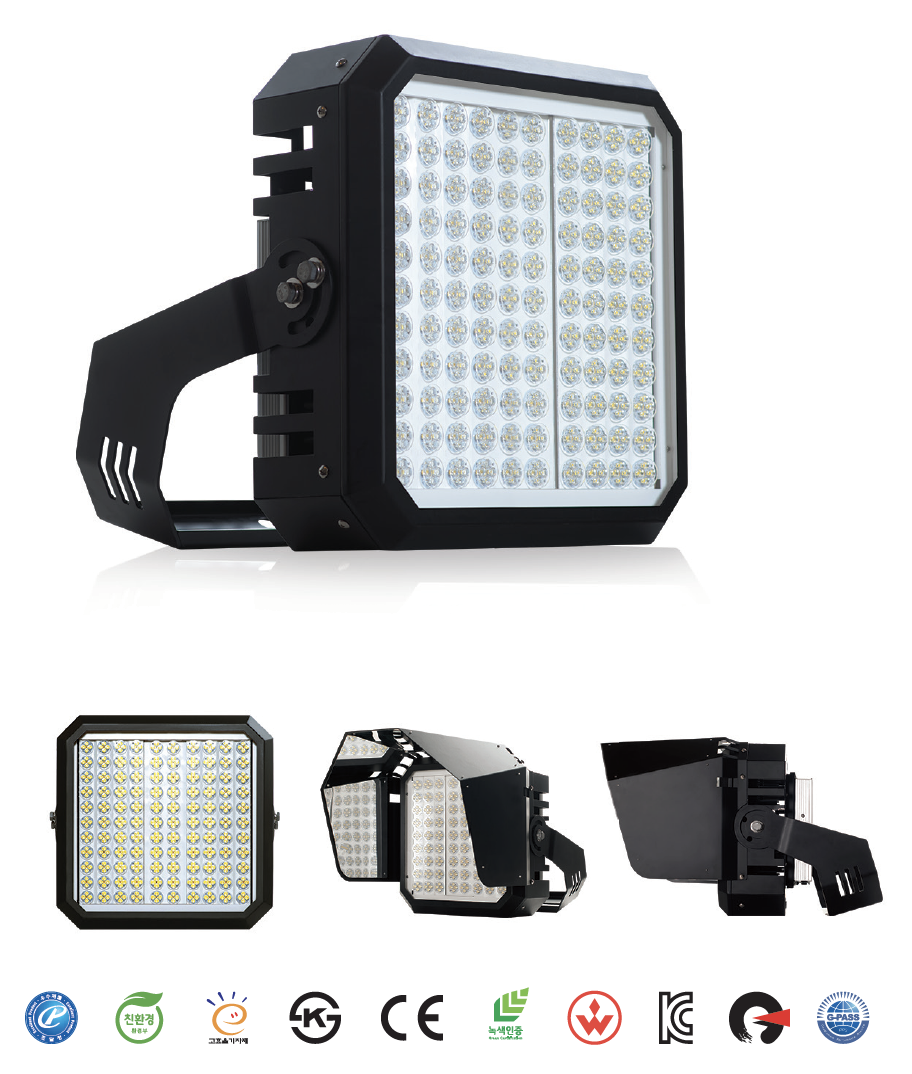

LED Sport Light

BCW-600N

BCW-600N
Replacement of 1.5KW MH lamp with 600W LED sport light

FEATURES

Korea’s highest level of light efficiency, light weight, small size
Customized sports lighting design according to various LED lens light distribution angle
Uniform color and illumination in the stadium
Provision of stable illumination with high lumen maintenance ratio
Hg free and Pb Free, Eco-friendly products
It is effective in reducing power costs and greenhouse gas emissions.
Long service life minimizes maintenance & management costs, including lamp replacement
Indoor / outdoor lighting system for sports and multi-purpose
Reduction of glare and improvement of uniformity ratio by wide light distribution technology
Options : Dimming system, Light visor

SPECIFICATIONS
Model No. Power Consumption Input Voltage Frequency Range Power Factor Luminous Flux CRI Color Temperature Luminous Efficiency Size(mm) LED Chip & PKG Maker Operating Temperature Life Time IP Code	BCW-600N 600W AC100V~240V 50~60 Hz ≥ 0.95 89,645 lm ≥ 75 3500K, 5000K, 5700K 149 lm/W 421 X 435 X 205 CREE -25 ~ 50℃ About 50,000hrs IP67

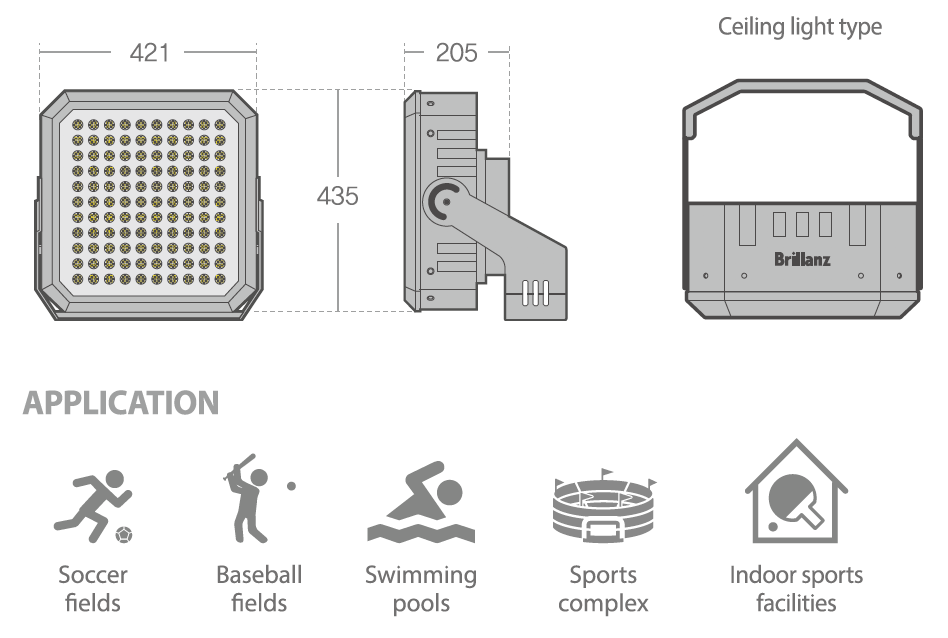

DIMENSION

LUMINOUS INTENSITY DISTRIBUTION
